Winnerwell Flue Pipe - Angles and Sizes
Winnerwell Flue Pipe - Angles and Sizes
Winnerwell Flue Pipe - Angles and Sizes

Winnerwell Flue Pipe - Angles and Sizes

Sale price$31.00
/
Tax included. Shipping calculated at checkout.
Size
Angle
Liquid error (snippets/image-element line 107): invalid url input

Features
Compatible with the Woodlander and Nomad series S / M / L sized wood-burning stoves
Made from 304 stainless steel
Replacement pipe if pipe sections become lost or damaged, or use when extra chimney height is required in your tent or shelter


Pipe 2.1'' Compatible with the Woodlander and Nomad series S-sized wood burning stoves, the Winnerwell Extra Pipe is made from 304 stainless steel and is 12 inches long, diameter 2.1".

Pipe 2.5'' Compatible with the Woodlander and Nomad series M-sized wood burning stoves, the Winnerwell Extra Pipe is made from 304 stainless steel and is 14.4 inches long, diameter 2.5".

Pipe 3.5'' Compatible with the Woodlander and Nomad series L-sized wood burning stoves, the Winnerwell Extra Pipe is made from 304 stainless steel and is 16.9 inches long, diameter 3.5".



45 and 90 Degree Pipe
The Winnerwell 45 and 90 Degree Pipes allow you to change the angle of the chimney pipe for tents and shelters where a wall exit is required.

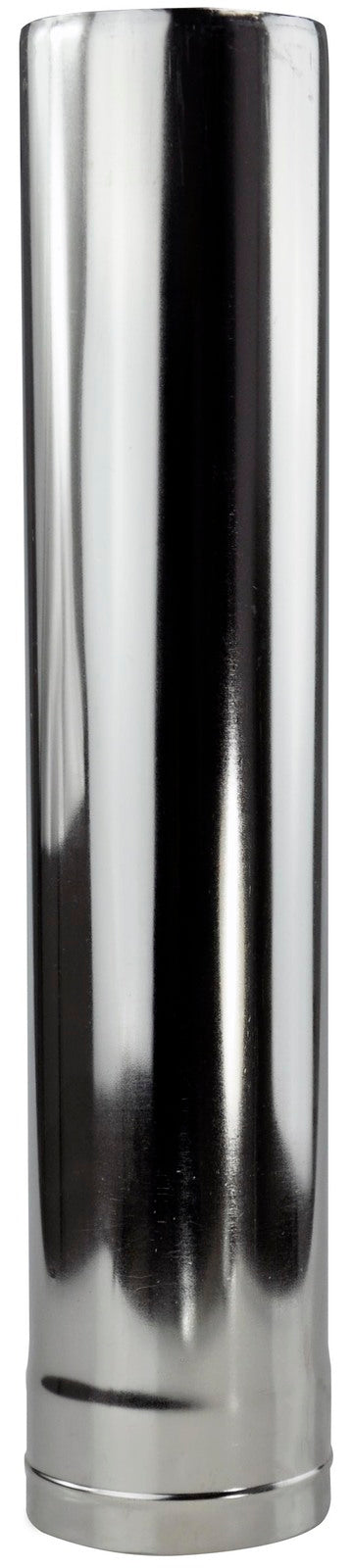

Specifications - Straight

Straight 2.1" (S)
Material: AISI304
Diameter: 53mm / 2.1in
Length: 305mm / 12in
Net Weight: 0.14kg / 0.31lbs

Straight 2.5" (M)
Material: AISI304
Diameter: 63mm / 2.5in
Length: 365mm / 14.4in
Net Weight: 0.28kg / 0.62lbs

Straight 3.5" (L)

Material: AISI304
Diameter: 89mm / 3.5in
Length: 430mm / 16.9in
Net Weight: 0.55kg / 1.21lbs

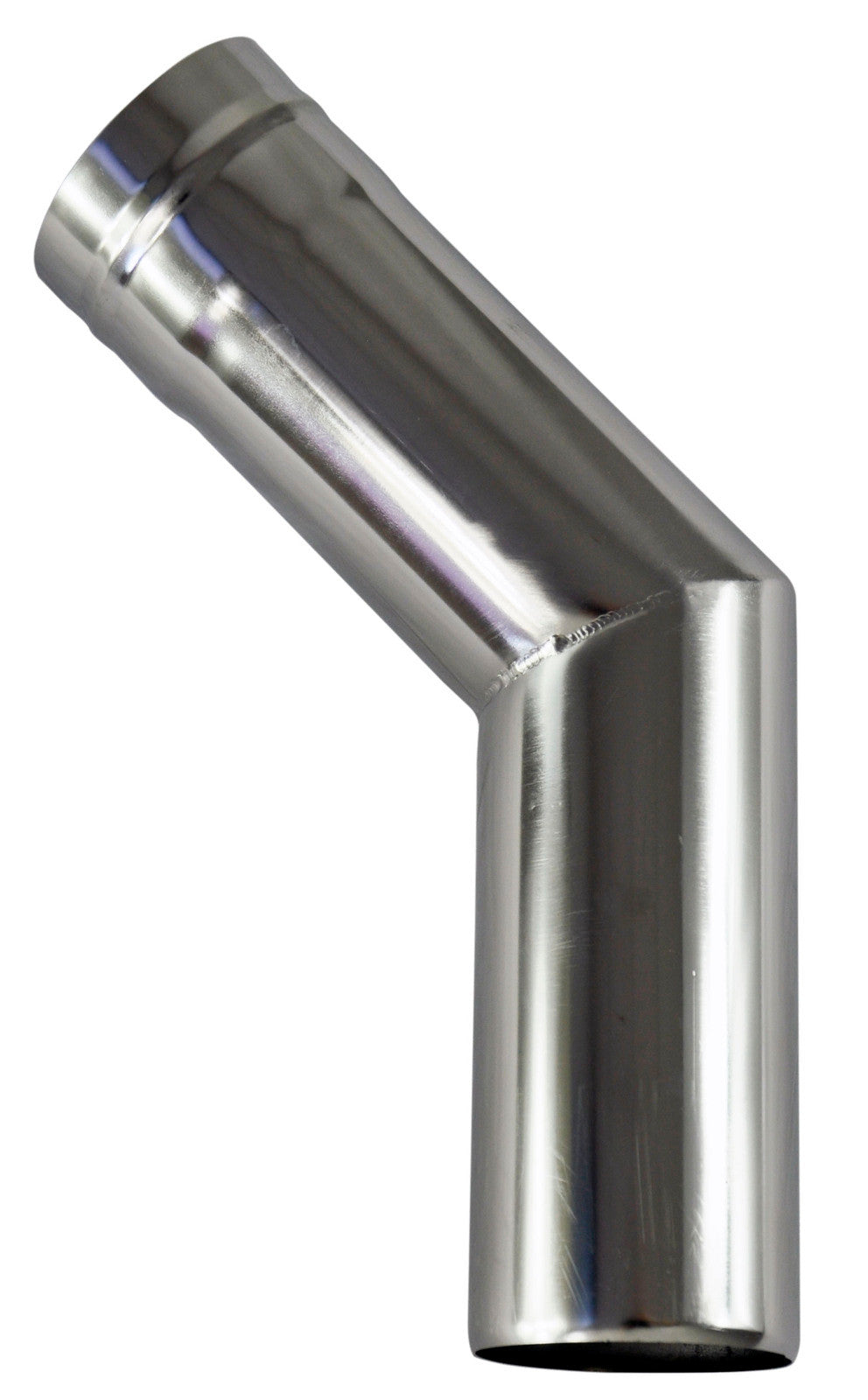

Specifications - 45 deg

2.1"
Material: AISI304
Dimension: 130(L) x 130(W) mm / 5.1(L) x 5.1(W) in
Diameter: 53mm / 2.1in
Net Weight: 0.14kg / 0.31lbs

2.5"

Material: AISI304
Dimension: 150(L) x 150(W) mm / 5.9(L) x 5.9(W) in
Diameter: 63mm / 2.5in
Net Weight: 0.22kg / 0.48lbs

3.5"

Material: AISI304
Dimension: 150(L) x 150(W) mm / 5.9(L) x 5.9(W) in
Diameter: 89mm / 3.5in
Net Weight: 0.34kg / 0.75lbs

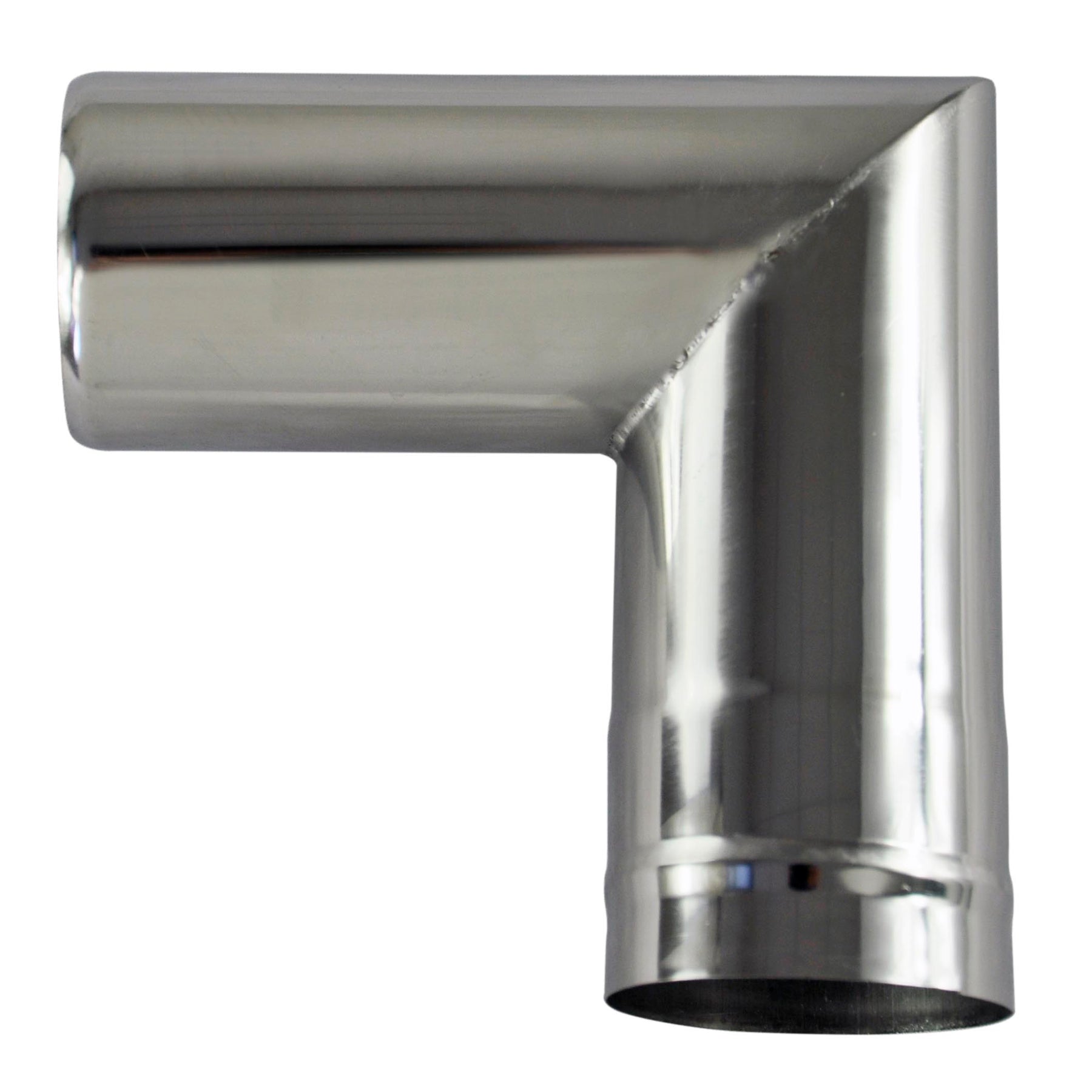

Specifications - 90 deg

2.1"

Material: AISI304
Dimension: 130(L) x 130(W) mm / 5.1(L) x 5.1(W) in
Diameter: 53mm / 2.1in
Net Weight: 0.13kg / 0.29lbs

2.5"

Material: AISI304
Dimension: 150(L) x 150(W) mm / 5.9(L) x 5.9(W) in
Diameter: 63mm / 2.5in
Net Weight: 0.2kg / 0.44lbs

3.5"

Material: AISI304
Dimension: 180(L) x 180(W) mm / 7.1(L) x 7.1(W) in
Diameter: 89mm / 3.5in
Net Weight: 0.35kg / 0.77lbs
